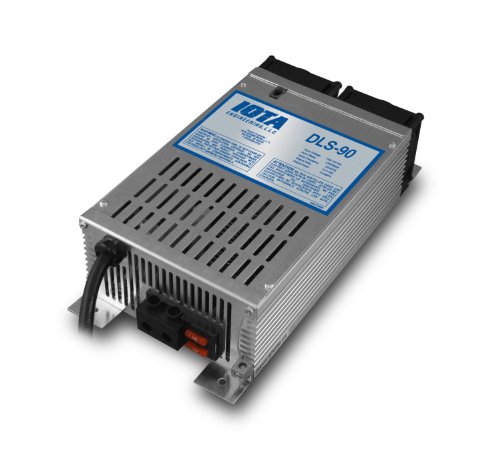

IOTA DLS-90 Converter and Charger

$308.95 (as of February 5, 2018, 6:45 am)

CONVERTS NOMINAL 108 – 132 AC VOLTAGE TO 13.4 DC VOLTAGE FOR BOTH DC LOAD OPERATION AND 12V BATTERY CHARGING
IDEAL FOR CHARGING ALL TYPES OF 12 VOLT LEAD ACID BATTERIES INCLUDING FLOODED, ABSORBED GLASS MAT (AGM) AND GEL CELL
AS A POWER SUPPLY THE UNIT’S TIGHTLY CONTROLLED REGULATION ALLOWS THE USER TO OPERATE A NOMINAL 12VDC LOAD UP TO 90 AMPS

Usually ships in 24 hours

Compare

Description

AS THE BATTERY NEARS ITS FULL CAPACITY THE DLS-90 WILL AUTOMATICALLY DROP THE CURRENT PROVIDING A FLOAT CHARGE TO THE BATTERY TO PREVENT SELF-DISCHARGE OF THE CELLS. PROVIDES AC/DC CONVERSION UP TO 90 AMPS AND FEATURES A DUAL VOLTAGE JACK ALLOWING THE USER TO MANUALLY SELECT BETWEEN 13.6V AND 14.2V CHARGING. INPUT FREQUENCY: 50 – 60 Hz. DC OUTPUT VOLTAGE )NO LOAD) APPROX.: 13.6V (DC). OUTPUT VOLTAGE TOLERANCE (NO LOAD) : + OR – 7%. OUTPUT AMPERAGE, MAX CONTINUOUS: 90 AMPS. OUTPUT VOLTAGE (FULL LOAD) APPROX.: >13.4V (DC). MAXIMUM POWER OUTPUT, CONTINUOUS: 1200 WATTS. RIPPLE AND NOISE: <150 mV RMS. INPUT VOLTAGE RANGE: 108 - 132V (AC). INPUT VOLTAGE FREQUENCY: 47 - 63. MAXIMUM AC CURRENT @ 108VAC: 21 AMPS. TYPICAL EFFICIENCY: >80%. MAX INRUSH CURRENT, SINGLE CYCLE: 50 AMPS. SHORT CIRCUIT PROTECTION. OVERLOAD PROTECTION: >100%. LINE REGULATION: 100 mV RMS. LOAD REGULATION: <1.5%. FAN CONTROL: PROPORTIONAL. THERMAL PROTECTION. WORKING TEMPERATURE RANGE: 0 - 40C. STORAGE TEMPERATURE: -20 to 80C. WITHSTAND VOLTAGE: 1240V @ LEADS. UL LISTED. WEIGHT: 7.8 LBS. DIMENSIONS: 13" X 6.5" X 3.4". 2 YEAR WARRANTY. CONVERTS NOMINAL 108 - 132 AC VOLTAGE TO 13.4 DC VOLTAGE FOR BOTH DC LOAD OPERATION AND 12V BATTERY CHARGING IDEAL FOR CHARGING ALL TYPES OF 12 VOLT LEAD ACID BATTERIES INCLUDING FLOODED, ABSORBED GLASS MAT (AGM) AND GEL CELL AS A POWER SUPPLY THE UNIT'S TIGHTLY CONTROLLED REGULATION ALLOWS THE USER TO OPERATE A NOMINAL 12VDC LOAD UP TO 90 AMPS AS A BATTERY CHARGER THE UNIT WILL MAINTAIN THE BATTERY DELIVERING ITS FULL RATED CURRENT WHEN THE BATTERY CAPACITY FALLS SUFFICIENTLY LOW VOLTAGE IS SET TO DELIVER ITS MAXIMUM CURRENT FOR THE NECESSARY PERIOD OF TIME TO MINIMIZE UNDUE STRESS TO THE BATTERY CAUSED BY HEATING OF ITS CELLS [amz_corss_sell asin="B0074JVOSW"]
